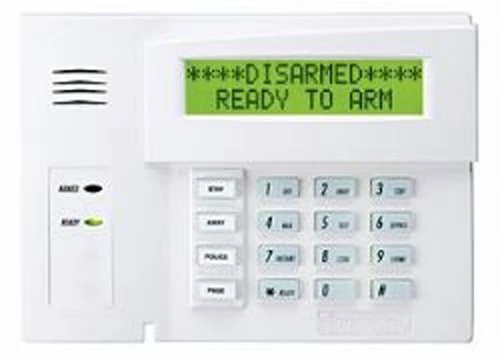

LCD Codepad


Click here to download User Guide


Function

Instructions



Disarm - 'Stay' only

[code] + OFF

Disarm - Full

[code] + OFF

Arm - Stay

[code] + STAY

Arm - Away

[code] + AWAY



Clear alarm memory

[code] + OFF



Acknowledge a Fault

Press any key



Clear fault

[code] + OFF + [code] + OFF



Bypass a zone

[code] + BYPASS + [zone] (2 digits)



Mains Indicator

AC - Normal (mains ok)


NO AC/AC LOSS - Mains Fail



Reset smoke / fire

OFF



Silent Panic

[duress code] + OFF or AWAY/STAY


Duress code must be programmed in system



Audible Panic

* + #


(press and hold together for 2 sec)



Send Test signal

[installer] + 5 + 1



Maximum # of Users

6



Maximum # of Zones

6 Zones


Expandable to 22



Maximum # of Partitions

2 Partition
