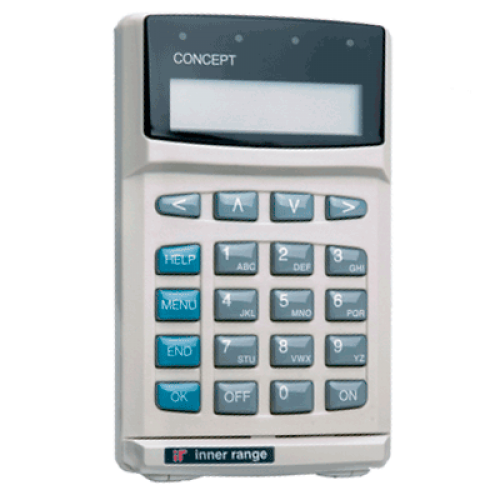

LCD Codepad


Click here to download User Guide


Function

Instructions



Disarm - 'Stay' only

N/A

Disarm - Full

[code] + OK + ↓ and ↑ to select Area + OFF

Arm - Stay

N/A

Arm - Away

[code] + OK + ↓ and ↑ to select Area + ON



Clear alarm memory

[code] + OK + OK on each message



Acknowledge a Fault

[code] + OK + OK on each message



Clear fault

[code] + OK + OK on each message



Bypass a zone

[code] + OK + MENU + 3 + [zone #] + OK


If zone # not known, use ↓ and ↑ to scroll



Mains Indicator

NO INDICATOR - Normal (mains ok)


AC FAIL - Mains Fail



Reset smoke / fire

[smoke reset code] + OK + OFF + ON



Silent Panic

[duress code] + OK + ON/OFF


Duress code must be programmed in system



Audible Panic






Send Test signal




Maximum # of Users

50 Users


Expandable to 4000



Maximum # of Zones

16 Zones


Expandable to 2176



Maximum # of Partitions

8 Partitions


Expandable to 250
